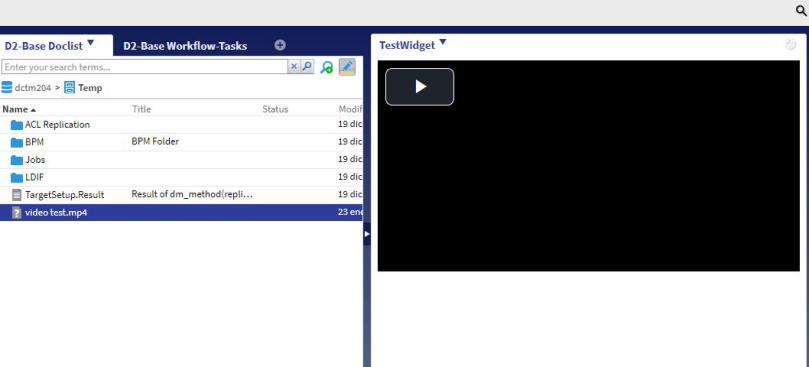

D2 Video Preview Widget

A while ago I did this for webtop (Video streaming from Webtop) which was later published by EMC as a white paper. This is a similar attempt using an external widget on D2.

In this case, I’ve used video.js, a free Javascript video player. The widget itself is quite straightforward, just create a normal external widget, register the D2_EVENT_SELECT_OBJECT and configure the external widget sending via parameter the user name, the repository and the session ticket. Once this is done, you just have to get the r_object_id of the selected document, set that value on the video object via JS, and just enjoy.

You can check the full on code on GitHub.

D2 slow loading login screen

You may have realized that D2 takes some time to load the login screen when you want to log in. The usual behaviour is that after typing D2’s url in your browser, you’ll see something that looks like a loading screen (after d2 spin wheel):

and after a few moments the login screen in shown.

This behaviour is not something Documentum users are used to when using Webtop so, why this happens? Well, by now you’ve probably realized that D2 does not show the repository name, but the repository description. And in a questionable design decision, this processing is done every time the login screen is loaded (=every time a user access).

This happens on C6-Common\com\emc\common\dctm\objects\DfDocbaseMapEx class and the effect is quite clear as it is shown in this log trace:

c.e.c.d.o.DfDocbaseMapEx[] : Load docbases from docbrocker 8.925s

Yes, here we have users waiting for 9 seconds before the login screen is shown, and this happens every single time they try to access D2.

So, what wizardry is behind this odd behaviour? Let’s check it:

public DfDocbaseMapEx(String attrName, String direction) throws DfException {
    StopWatch stopWatch = new StopWatch(true);
    this.m_docbases = new TreeSet(new DfDocbaseComparator(this, attrName, direction));
    IDfClient client = DfClient.getLocalClient();
    IDfDocbaseMap docbaseMap = client.getDocbaseMap();

    int count = docbaseMap.getDocbaseCount();
    for (int i = 0; i < count; i++) {
      try {
        String server;
        IDfTypedObject serverMap = docbaseMap.getServerMap(i);
        String name = docbaseMap.getDocbaseName(i);
        String currentServer = serverMap.getString("i_host_name");

        if (serverMap.findString("r_host_name", currentServer) == -1) {
          server = serverMap.getRepeatingString("r_host_name", 0);
        } else {
          server = currentServer;
        String description = docbaseMap.getDocbaseDescription(i);
        String version = docbaseMap.getServerVersion(i);
        DfDocbaseEx docbase = new DfDocbaseEx(this, name, server, description, version);
      catch (DfException e) {
        LOG.error("{}", e);
    LOG.debug("Load docbases from docbrocker {}", stopWatch);

Well, there is no much mistery here, getting an IDfTypedObject for each repository registered in your docbroker, every single time a user logs in… it may not be very noticeable with one repository, but try this code with +10 repositories… You can add logging inside the loop and check how much time takes for each repository…

This questionable design decision, makes you also wonder about other behaviors/configurations from D2:

  • Repository filter option: This acts as a simple cosmetic filter, as you can see that there’s no filtering when the list is populated. This means that you can have one repository listed, but you still have to wait for all the repositories to be “processed”
  • If you have enabled autologin/default repository, you’ll face the same situation, users will be logged in directly… after several seconds waiting for the login screen (that they won’t see) to finish loading.

So, what can we do to fix it (besides waiting for OT to fix it)?. Well, as you can see the code is no rocket science, so there are a bunch of possibilities:

  1. Don’t process every single time the repository list (basically check if this.m_docbases == null or size == 0)
  2. Load settings.properties and actually apply the repository filter inside the for loop
  3. Process autologin setting as in #2
  4. Add an option in D2FS/settings.properties to use repository name and forget about description
  5.  Don’t instantiate the servermap and use i_host_name from docbaseMap

By implementing any of these approaches you’ll get something like this when loading the repository list:

Standard D2:
repo1:16.4.0100.0153 Linux64.Oracle -> 1.087s
repo2:16.4.0100.0153 Linux64.Oracle -> 1.093s
repo3:16.4.0100.0153 Linux64.Oracle -> 1.098s
repo4:16.4.0100.0153 Linux64.Oracle -> 1.108s
Total: 4.389s
Modified D2:
repo1:16.4.0100.0153 Linux64.Oracle -> 0.000s
repo2:16.4.0100.0153 Linux64.Oracle -> 0.000s
repo3:16.4.0100.0153 Linux64.Oracle -> 0.000s
repo4:16.4.0100.0153 Linux64.Oracle -> 0.000s
Total: 0.002s

And users will be much happier than before 😀

D2 Config zip export without D2-Config

In a previous post I explained how to perform a full import of the D2 configuration without using D2-Config (D2-Config without ActiveX). You can also export the D2-Configuration to a XML file by using the bundled d2configutils in D2-Config. But how about exporting a full D2-Config as a zip file (including images, etc.)?. Well, here you go:


D2Config config=new D2Config(session);

//this will place the zip file in your temp folder
File zipConfigfile = config.getZipExport(null, null, false, new ArrayList());


If you want to export just a single application/configuration, just change the second parameter to the name of your application/configuration.


Custom labels for column values in D2 queries

Problem: We have a query that is using aliases (r_object_type as cod) that shows documents on D2’s objectlist. We want to use a custom dictionary for those values, but the dictionary values are not applied.

Solution: This mappings are stored in d2_attribute_mapping_config, this table contains a list of repeating attributes that store those mappings:

  • type_name: type with the attribute to map
  • attr_name: name of the attribute that contains the values to map
  • dictionary_name: name of the dictionary with the values to show
  • alias_locale_name: auto/language of the values to show

So, this table stores in the repeating attributes the values of the type, attribute and dictionary. This means that you can only map columns that have attribute names.

Solution? Workaround? Append new values to those attributes, indicating the alias you are using, the type used in the “from” clause of the query and the dictionary, and you’re good to go.

Of course, this is completely unsupported by Opentext 🙂

D2-Config without ActiveX

If somehow you find yourself working for a customer with very strict security policies that don’t allow ActiveX components, you can still work with D2-Config even if you cannot install the activex component.

You can access /D2-Config/ConnectDialog.html, ignore the popups and login as usual, then you’ll be redirected to /D2-Config/interface.html?interfaceId=null# which is the page with D2-Config matrix.

Every time you click somewhere you’ll get a popup stating the C6 ActiveX is not loaded but you can simply ignore it, as most of the application will work.

If you need to perform a full import of a configuration, you can do so with the following code (note that this will reset D2-Config configurations):


D2Config config=new D2Config(session);

config.importZip(new File("full path to Zip file with configuration"),
true, null, null, true, true, null);

Map arguments = new HashMap();
arguments.put("-callerUrl", "http://server/D2/");
arguments.put("-all", Boolean.TRUE);
D2Method.start(session, D2RefreshCacheMethod.class, arguments);


You’ll need to add to your project d2-api.jar and c6-common.jar, mark as approved the dfc instance used by the program’s dfc, and set the java.security parameter as explained in D2 4.7/16.4 configuration in eclipse

D2 4.7/16.4 configuration in eclipse

This post is quite similar to the Debugging D2 4.5/4.6 previously posted, explaining how to set up D2 without lockbox, but much more simple due to the missing lockbox.

Extract all files from D2/D2-Config to a local folder in your computer, configure a new (tomcat) server in Eclipse, and configure the following parameters:

  • JVM arguments:
    • -Djava.io.tmpdir=”<absolute path to some temp folder>\d2″ (make sure this folder exists)
    • -Djava.security.policy=file:///<absolute path to java.policy file> (the documentation states to change java.policy in your JRE, but I rather use this cleaner solution: create a local java.policy file with a single line:

      grant { permission com.documentum.fc.client.impl.bof.security.RolePermission “*”, “propagate”;}; and reference it with the java.security.policy parameter)

    • Additional memory/custom parameters

Now, start the server, take note of the dfc.keystore id, mark it as approved privilege client in DA and you are good to go.

OTEW 2018 fun

I’m not attending the event being held in Toronto, but I found through twitter this nice url:

http://hol-host05.eastus.cloudapp.azure.com:81/d2-unity-web/ui/app.html -> This is the new D2 UI (and yes, you can use the you-know-which-default-user(s) to log in and check it by yourself) deployed on Azure (which is weird, considering Opentext has its own cloud…)

But, the really funny thing here, are these urls:

http://hol-host05.eastus.cloudapp.azure.com:81/da -> da 7.3 (but with CS 16.4/SQL Server)

http://hol-host05.eastus.cloudapp.azure.com:81/D2 -> hello old D2 vulnerabilities 🙂

http://hol-host05.eastus.cloudapp.azure.com:81/d2-unity-web/repositories -> and you can log in with you-know-which-default-user(s), and you have a nice DQL tool provided by REST services 🙂

Documentum D2 Cache

Usually when working with D2 one common problem is the cache and how/when to refresh it in order to see changes (attribute labels, dictionary values, etc.).

The common solution for every problem suggested by support is usually to delete “Tomcat’s temp folder”, where you’ll find the following files:

  • c2file-cache.data
  • folder-cache.data
  • o2attrconfig-cache.data
  • taxonomy_level-cache.data
  • skin-cache.data
  • dictionary_dql-cache.data
  • xml-cache.index
  • xml-cache.data
  • D2FileCleaningTracker_D2.ser
  • X3Image<random numbers>.png (multiple files)

This is most often a workaround for “refresh cache” option from D2-Config, which most of the times won’t work because it works by appending a /Servlet/refreshCache to the URL configured in the setting. Why does this not work? Well, it (mostly) does if you run a single server, however, if you’re running a cluster of multiple application server, which one is receiving the call and cleaning its cache? well, good luck guessing 😀

Besides, JMS also has these cached files (well, not all those files), and this cache is placed on /tmp. Is this a problem? No if you have a single Content Server on your server or if you are not running an application server (not Tomcat) with the different credentials from Documentum.

But, what happens if you happen to run, let’s say, several Content Servers on the same host, with different D2 versions in each one, and you run different application servers on your server, with different D2 versions? Well, what happens is havoc.

You’ll found the cache files on /tmp, but those will be “locked” by the user that created those files on the first place. Why this behaviour? Well, if we check support page, we’ll find KB6269196:

Because D2 does not contain any ehcache.xml configuration files, the default behavior of the ehcache library is to store the cache data files in the path specified by java.io.tmpdir.

Append the -Djava.io.tmpdir option
Modify and change to default run time JAVA_OPTS
usage: -Djava.io.tmpdir=/home/dmadmin/temp”

So, we can get some conclusions from this support note:

1. D2 cache is stored in java.io.tmpdir, which in Tomcat is its temp folder, and in Linux is /tmp.

2. Support likes using sledgehammers to crack nuts (changing the default temporary folder of the application server for a couple of files???, really???)

3. Support/engineering/talented team just don’t bother or they can’t read

Why do I say that? Because D2 has indeed a configuration file (actually has three configuration files in JMS and two in D2/D2-Config) and the default behaviour of ehcache is not storing cache on java.io.tmpdir. Let’s take a look to the documentation of the (obsolete, as usual) version bundled in D2:

DiskStore configuration
The diskStore element is optional. To turn off disk store path creation, comment out the diskStore element below.
Configure it if you have overflowToDisk or diskPersistent enabled for any cache.
If it is not configured, and a cache is created which requires a disk store, a warning will be issued and java.io.tmpdir will automatically be used.
diskStore has only one attribute – “path”. It is the path to the directory where.data and .index files will be created.
If the path is one of the following Java System Property it is replaced by its value in the running VM. For backward compatibility these are not specified without being enclosed in the ${token} replacement syntax.

The following properties are translated:
* user.home – User’s home directory
* user.dir – User’s current working directory
* java.io.tmpdir – Default temp file path
* ehcache.disk.store.dir – A system property you would normally specify on the command line e.g. java -Dehcache.disk.store.dir=/u01/myapp/diskdir …

Subdirectories can be specified below the property e.g. java.io.tmpdir/one

<diskStore path=”java.io.tmpdir”/>

So, if “nothing” is specified, ehcache will fallback to java.io.tmpdir or the value specified in the ecache-failsafe.xml (located in ehcache.jar), which happens to be pointing to java.io.tmpdir too.

So we’ve already found one configuration file in ehcache.jar, where’s the second one? Well, look into WEB-INF/lib/C6-Common.jar/com/emc/common/java/cache/d2-cache.xml in D2.war/D2-Config.war or in $JMS_DEPLOYMENT_DIR/ServerApps.ear/lib/C6-Common.jar/com/emc/common/java/cache/d2-cache.xml:

<diskStore path=”java.io.tmpdir”/>

Second configuration file (and the one actually being picked up, you can check the D2/D2-Config/JMS logs on DEBUG for confirmation) which contains a value… Actually you can change this to a hardcoded value or to a more suitable solution by setting ehcache.disk.store.dir as value and changing JAVA_OPTS in order to include -Dehcache.disk.store.dir=<your temp path for ehcache files>, which is way less aggresive than changing java.io.tmpdir.

And the third one? Take a look to your JMS ServerApps.ear/APP-INF/classes/d2-ehcache.xml, but note that this file is useless as it not picked by the classpath.

Opentext Documentum is coming next month

I didn’t realize that roadmap documents were updated last month. It looks like the February release is still going to happen (and I’ve been told a definite date, so it looks it won’t be delayed). After reviewing them (haven’t seen any changes :D), I can say:

  • Not much features regarding CS, the pattern/usage visualization and the s3 support (which, as far as I know, can be already done without official support) are the new features.
  • No word about DFS, and I know for a fact that several customers have actively asked for updates to current libs and extended support for application servers.
  • Clients get barely any changes (D2, Webtop, xCP).

I’m curious to see how many bugs are found in this first release from Opentext (and the brave customers that go first into the unknown :D), considering that some of the experienced Documentum staff left the company and the changes to the development cycle (that I guess happen when you move from a hardware company to a software company)
